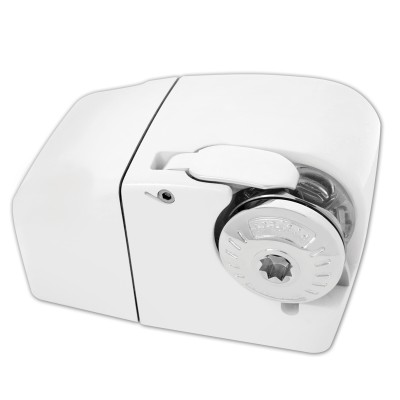

LION 1000 - Horizontal Windlass, Alu 12v 700W, 6 mm, ISO 4565 Horizontal Windlasses

LION 1000 - Horizontal Windlass, Alu 12v 700W, 6 mm, ISO 4565

SKU 636214 Category Horizontal Windlasses
€940.90

The Lofrans Lion 1000 is a horizontal electric anchor windlass with a powerful 700 W motor, manufactured from white anodised aluminium. Designed for medium-sized sailing yachts and motor boats, it provides safe, reliable and efficient anchor handling using 6 mm or 8 mm chain in compliance with ISO 4565 and DIN 766 standards.

Motor size
Voltage
Gypsy
Add to Cart

The Lofrans Lion 1000 is a horizontal electric anchor windlass designed for sailing yachts and motor boats of medium size. Equipped with a powerful 700 W motor and a robust white anodised aluminium construction, it ensures reliable and safe anchor handling in all marine conditions.

The windlass is designed to operate with 6 mm or 8 mm chains, depending on the version, and complies with ISO 4565 and DIN 766 standards. The IP67-rated motor provides excellent protection against water and harsh marine environments, while the compact horizontal design allows easy installation even in limited bow spaces.

Features

  • Horizontal electric anchor windlass
  • Powerful 700 W motor
  • Optional automatic free-fall
  • Manual chain release
  • Spring-loaded arm for correct chain guidance
  • Magnetic chain counter sensor as standard
  • IP67 motor protection
  • Control box included
  • White anodised aluminium construction

Technical specifications

Product code 636214 636215
Description LION 1000 W.ALU LION 1000 W.ALU HT
Motor power 700 W
Voltage 12 V
Profile Low profile
Free fall No
Chain size 6 mm 8 mm
Chain standard ISO 4565 ISO 4565 / DIN 766
Hauling speed 23 m/min
Retrieval speed 26 m/min
Maximum pull 575 kg
Weight 11 kg
Material White anodised aluminium
